Milton Bradley Microvision

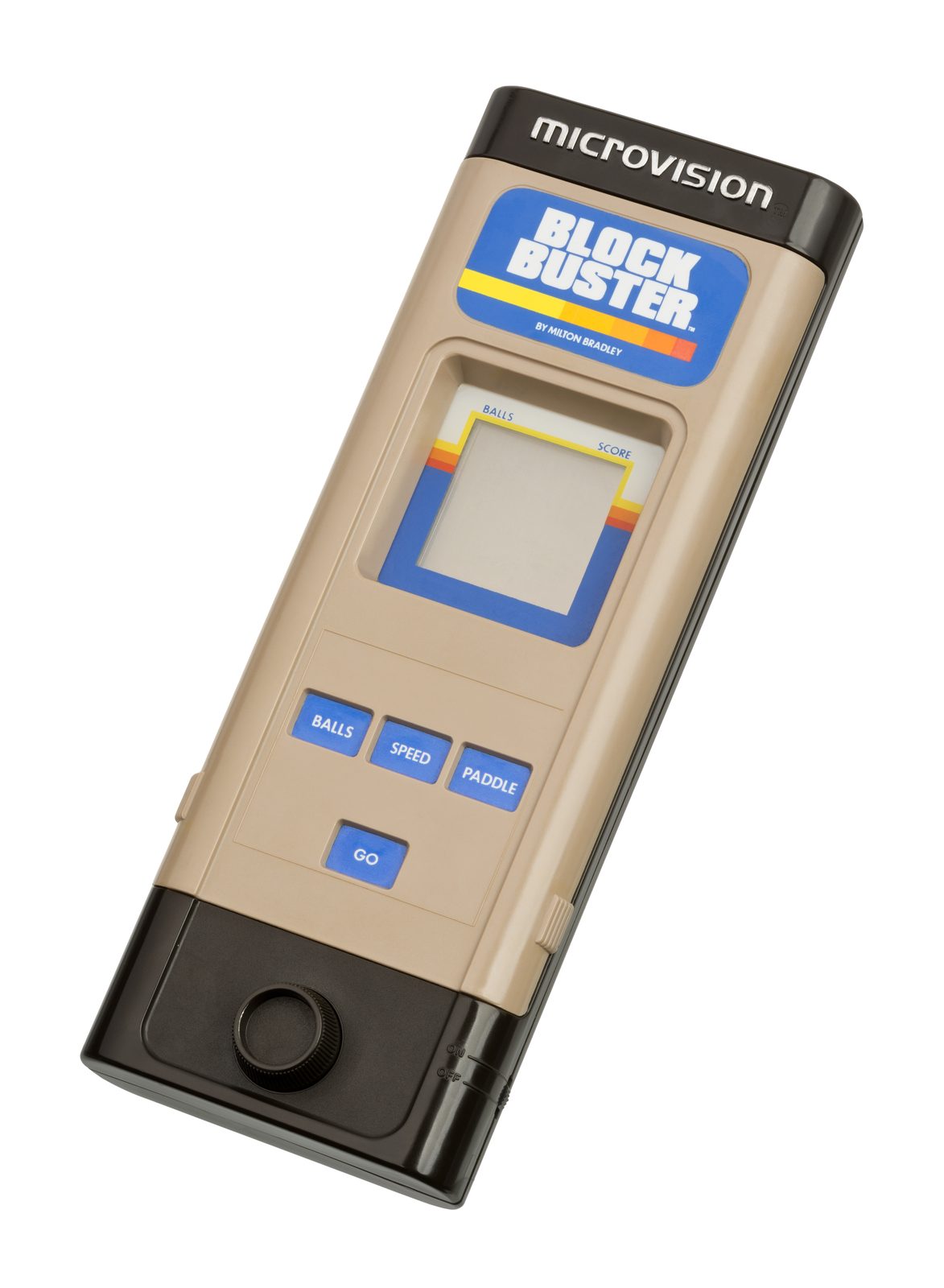

On November 1, 1979, Milton Bradley launched the Microvision in North America at $49.95. It is the first handheld with interchangeable cartridges — a full decade before the original Game Boy in 1989. The designer was Jay Smith (who would go on to design the vector-graphics home console Vectrex in 1982), working in a 1979 in which the “dedicated handheld” product category did not yet exist as such. The closest precedents were single-game LCD toys like Mattel Electronics Football — one device, one game, no swappable software. The “console-style swappable cartridges in handheld form” concept was Microvision’s original contribution to the field.

Milton Bradley itself was, at the time, one of the largest North American toy brands — the publisher of Connect Four, The Game of Life, Operation, and Battleship. By 1979, Milton Bradley had observed the rapid spread of the Atari 2600 (1977) and decided to apply the home-console swappable-cartridge model to a portable form factor — a cross-category move that was unusually conceptually bold for the era.

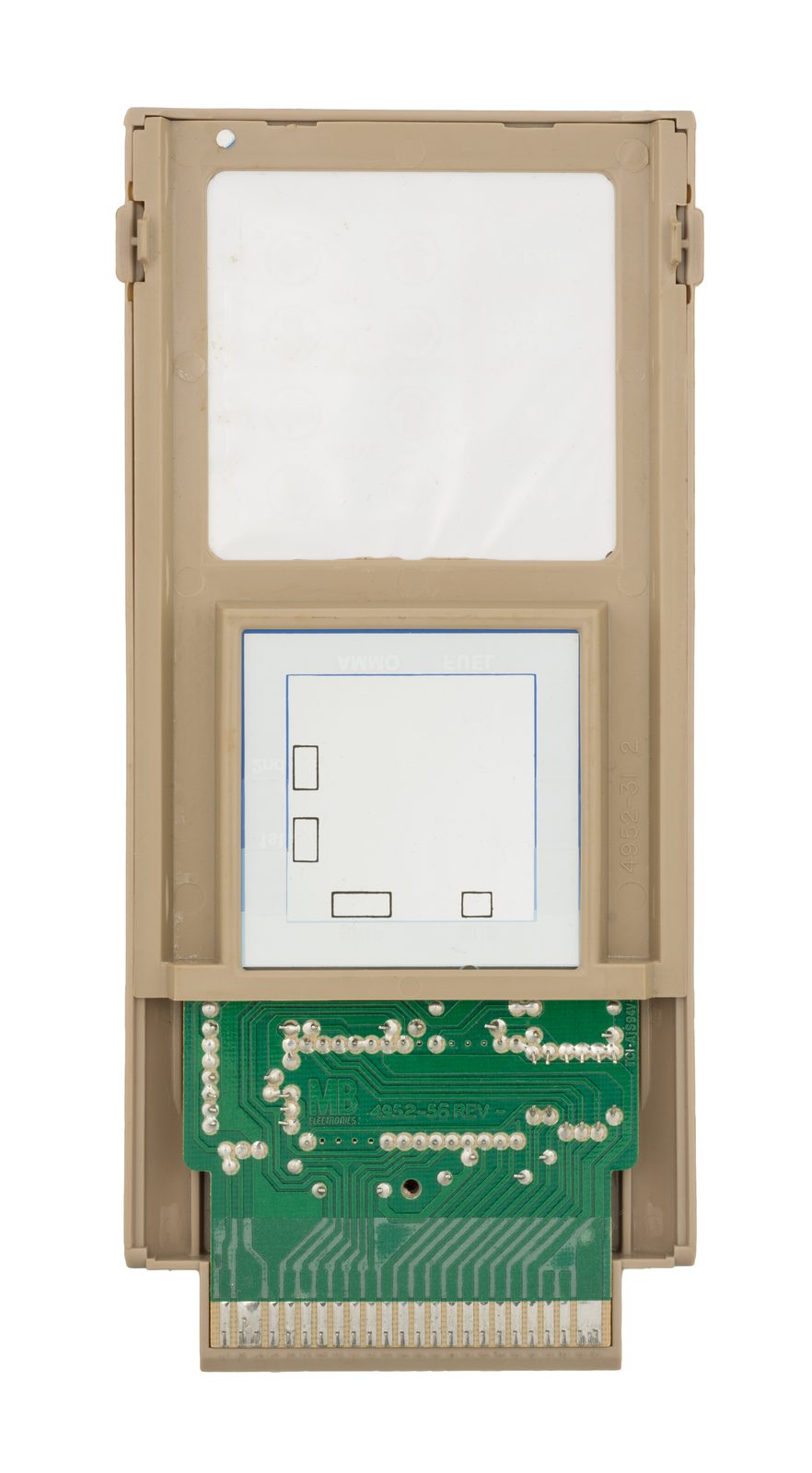

The hardware architecture was historically unusual. The CPU itself lived inside each cartridge (an Intel 8021 or Texas Instruments TMS1100, depending on the title); the system unit was effectively only a shell — an LCD, a 12-key keypad, a rotary knob, and a 9V battery. This was a deeply cost-engineered architecture: the unit could be cheap ($49.95), but the CPU cost was distributed across the cartridge price ($13–$15 per game). The 16×16 monochrome LCD — 256 pixels total — was 95% smaller than a modern emoji at 72×72. Input was a 12-key keypad and rotary paddle (an Atari-style analog control), with no D-pad — the directional pad as a concept did not arrive until Nintendo’s 1982 Donkey Kong Game & Watch.

Only 13 cartridges shipped over the system’s commercial life, all developed by Milton Bradley first-party. Representative titles included Block Buster (1979 — pack-in, Pong / Breakout-class), Star Trek Phaser Strike (1979 — Star Trek-licensed), Connect Four (1979 — board game), Bowling (1980), and Mindbuster (1979). The 16×16-pixel ceiling restricted the system’s possible game types to Pong, Breakout, and simple board games — 3D, action, and RPG were structurally impossible at that resolution.

The Microvision’s commercial failure had two technical roots. First, static electricity damage to the LCD: the LCD edge was exposed in the cartridge slot’s design, and finger discharge could destroy the LCD outright — a widespread casualty during the dry winters of 1979–1980. Second, near-zero sunlight visibility: the reflective LCD was effectively black outdoors, and 1979 had no backlight technology. A third issue was screen burn-in — sustained image patterns produced permanent ghosting on the LCD. By 1981 these failures, together with the simultaneous Pac-Man-driven Atari 2600 boom that drained Milton Bradley’s resources to the home-console business, drove the company out of the platform.

Commercially, the Microvision reached roughly 500,000 units worldwide (1979–1981) — a respectable result given that the dedicated-handheld market did not yet exist when it shipped, but Milton Bradley did not build on the foundation. The Microvision’s standing in retro circles is significantly under-credited: it is not merely “the handheld before the Game Boy,” it is the conceptual prototype of the dedicated-handheld industry as a whole. The 1980s Game & Watch series (Yokoi’s single-game LCD handhelds at Nintendo) and the 1989 Game Boy (swappable cartridges with a unified host) inherit directly from the architectural model Microvision proposed in 1979 — a swappable-cartridge handheld with a standardized hardware host. The Microvision is the genuine origin point of the entire dedicated-handheld category.
