[ GEN 4 · NEC + Hudson Soft ]
PC Engine / TurboGrafx-16
Image archive
Specifications
- Manufacturer
- NEC + Hudson Soft
- CPU
- Hudson HuC6280 (65xx derivative) @ 7.16 MHz
- GPU
- Hudson HuC6270 VDC + HuC6260 VCE — 482 simultaneous colors
- RAM
- 8 KB
- Resolution
- 256 × 239 (typical)
- Audio
- HuC6280 built-in 6-channel wavetable
- Media
- HuCard (credit-card cartridge) / CD-ROM² (1988 — the first home console CD format)
Release dates
- Japan
- 1987-10-30
- North America
- 1989-08-29
Lifetime sales
- Official figures
- ~10 million worldwide (PC Engine family + North American TG-16)
- Community consensus
- Japan 5.8M+ / North America ~2.5M / Europe never released
Late-1990s NEC and Hudson cumulative estimates
Hardware variants
PC Engine CoreGrafx / CoreGrafx II
1989 / 1991 JPRevised base console
The CoreGrafx, released December 1989, swapped to a dark gray shell, replaced the original's RF-only output with proper composite AV, and tweaked the controller pinout. Performance stayed identical to the original PC Engine, but it became the standard late-Japanese base unit. The 1991 CoreGrafx II (white) extended the line at a lower price and was the most common PC Engine in Japanese homes through the 1990s.

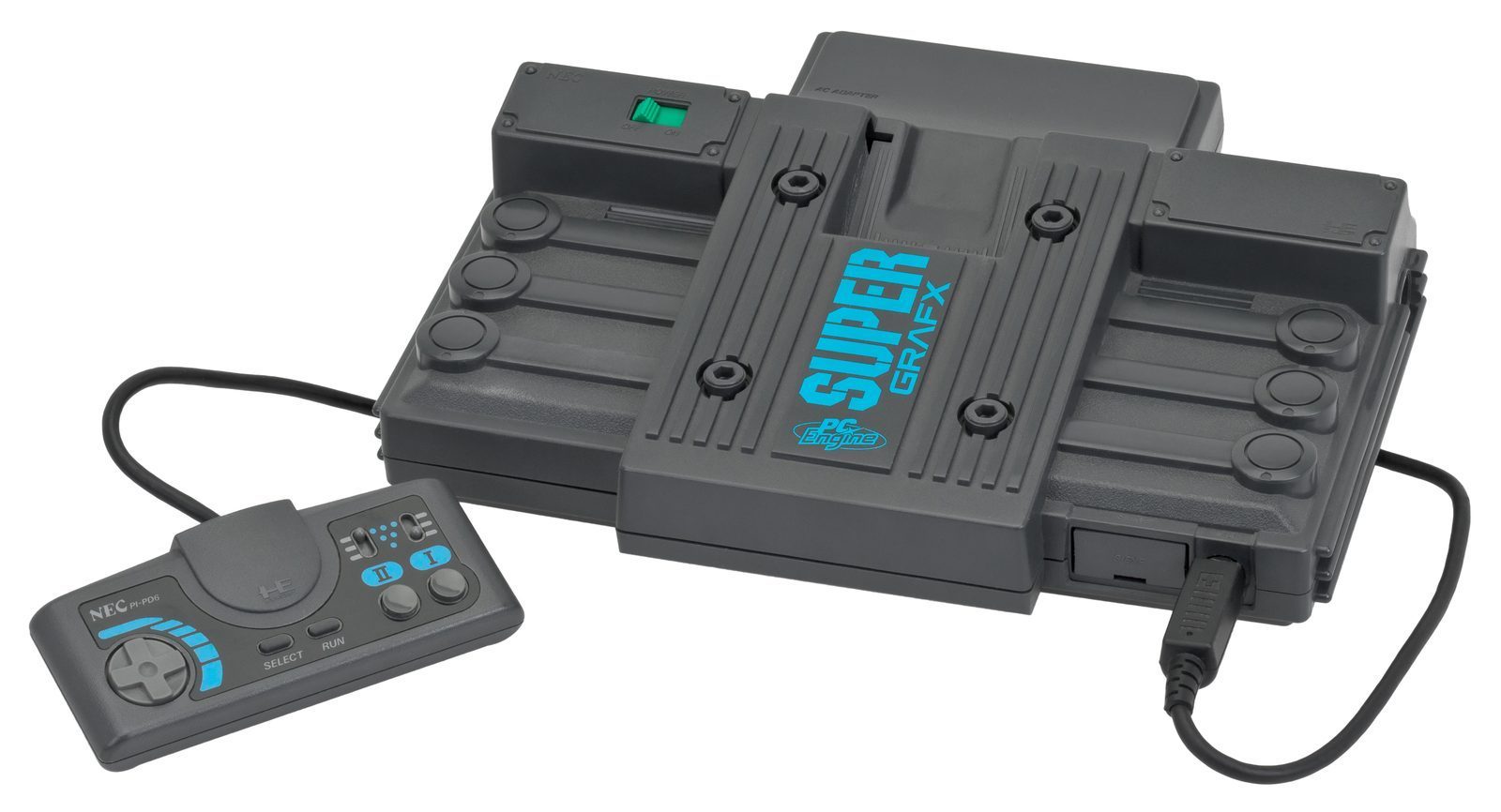

PC Engine SuperGrafx (PC-FX precursor)
1989 JPEnhanced console
Released December 1989 at ¥39,800, the SuperGrafx was meant to fight the Mega Drive and the imminent Super Famicom by adding a second HuC6270 VDC (totaling four BG planes and 128 sprites), 64 KB of VRAM, and four times the CPU RAM. But the toolchain wasn't ready and software compatibility issues were severe — **only five exclusive titles shipped** (1941 Counter Attack, Aldynes, Ghouls 'n Ghosts, etc.) before the line quietly folded in 1991. PC Engine's most spectacular mid-generation commercial failure.
PC Engine CD-ROM² (original three-piece setup)
1988 JPCD-ROM expansion
Released December 4, 1988, the CD-ROM² was **the first mass-market CD-ROM peripheral on a home console** — three years before Sega's Mega-CD and six years before the PlayStation. The complete setup required three units: PC Engine + IFU-30 interface (¥27,800) + CDR-30 drive (¥32,800). Ys I & II, Castlevania: Rondo of Blood, and Tengai Makyou II were all born on those discs.
PC Engine Duo / Duo-R / Duo-RX
1991-1994 JPHuCard + CD integrated models
The original Duo (September 1991, ¥59,800) integrated HuCard and CD-ROM² playback into a single chassis, killing the cable-nightmare three-piece setup, with built-in headphone jack and RGB output. Duo-R (1993, white cost-reduced version) and Duo-RX (1994, six-button controller) became the collector-friendly stable variants. The Duo line was the **final form** of the PC Engine platform and stayed in production until 2001 — a 14-year long-tail.

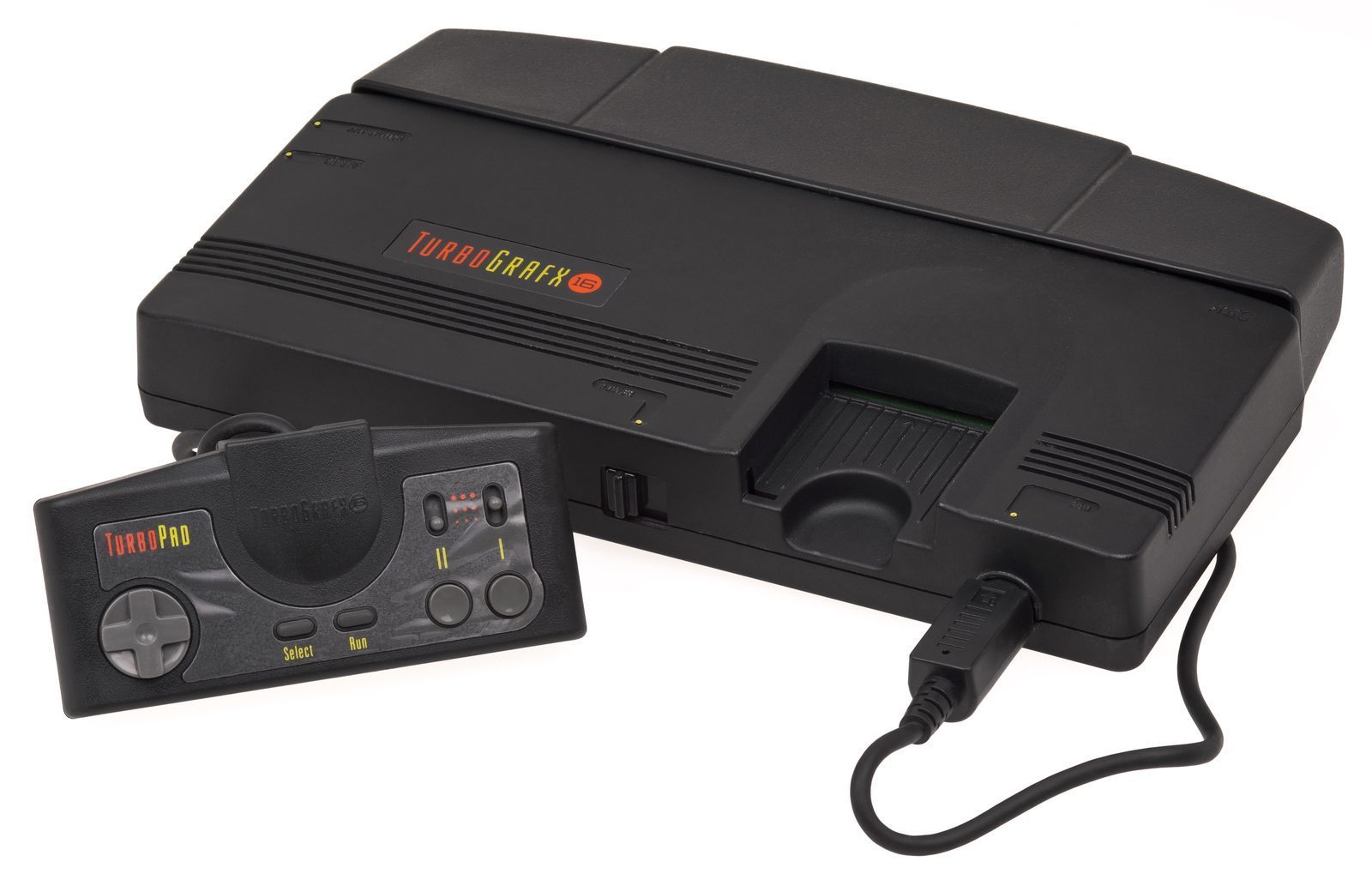

TurboGrafx-16 / TurboDuo / TurboExpress
1989-1992 NANorth American versions and handheld
The North American TurboGrafx-16 of August 1989 redesigned NEC's cute white cube into an ugly black slab, priced the CD-ROM peripheral out of reach, and was outmarketed by Genesis's "Does What Nintendon't." The 1992 TurboDuo (HuCard + CD integrated, $299) tried to rescue the line too late. The 1990 TurboExpress / PC Engine GT was a **fully native HuCard color LCD handheld** ($249, six AA batteries lasting only three hours) — LCD yield and battery life kept it firmly in collector territory.
On 30 October 1987, NEC Home Electronics and Hudson Soft launched the PC Engine in Japan at ¥24,800. It was, at launch, the smallest home console in the world — a 14 cm cube fed by credit-card-sized HuCard cartridges that slid in from the side. The architecture was odd: an 8-bit CPU paired with a 16-bit GPU. This was Hudson’s semiconductor team flexing — the HuC6280 family let the system push 482 simultaneous colors while the CPU ran 8-bit-fast, and from boot the visual density jumped a clear generation.
A year before the Mega Drive, three years before the Super Famicom. And in Japan, it landed. PC Engine took third place in the Japanese home market — behind only the Famicom and Super Famicom — and outsold the Mega Drive in Japan for most of its life. In December 1988 NEC launched CD-ROM², the first optical drive ever attached to a home console — three years before Sega’s Mega-CD, six years before PlayStation. Falcom’s Ys I & II and Konami’s Castlevania: Rondo of Blood were born on those discs.
Abroad, total disaster. The 1989 North American launch as the TurboGrafx-16 went wrong on every axis: NEC-HE redesigned the chassis into an ugly black slab, marketing was outflanked by Sega’s “Genesis Does What Nintendon’t” assault, third-party licensing was strangled by Nintendo’s lockout posture, and the CD-ROM add-on was priced beyond reach. Europe never got an official release at all. “PC Engine is strong, TurboGrafx-16 is weak” — same hardware, two opposite fates in two markets.
The variant family was unusually rich: CoreGrafx (color refresh), SuperGrafx (over-engineered, commercial flop), PC Engine GT (the handheld version — covered separately on the handheld track), Duo / Duo-R / Duo-RX (HuCard + CD integrated). For Asian retro collectors, PC Engine remains the connoisseur’s pick — niche, expensive, and culturally distinct from the Nintendo / Sega axis.
Hudson was fully absorbed by Konami in 2012; the IP now sits with Konami, which released the PC Engine Mini reissue in 2020. English retro consensus: “PC Engine” is purist usage; “TG-16” is North American vernacular.
Notable titles
- Bonk's Adventure (Hudson, 1989)
- R-Type (Irem, 1988)
- Bomberman '94 (Hudson, 1993)
- Castlevania: Rondo of Blood (Konami, 1993)
- Ys I & II (Falcom, 1989 — CD-ROM²)
